LA NACIÓN Building

Project

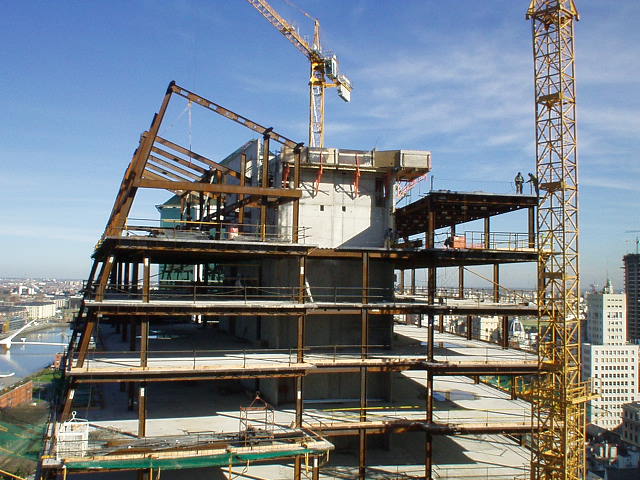

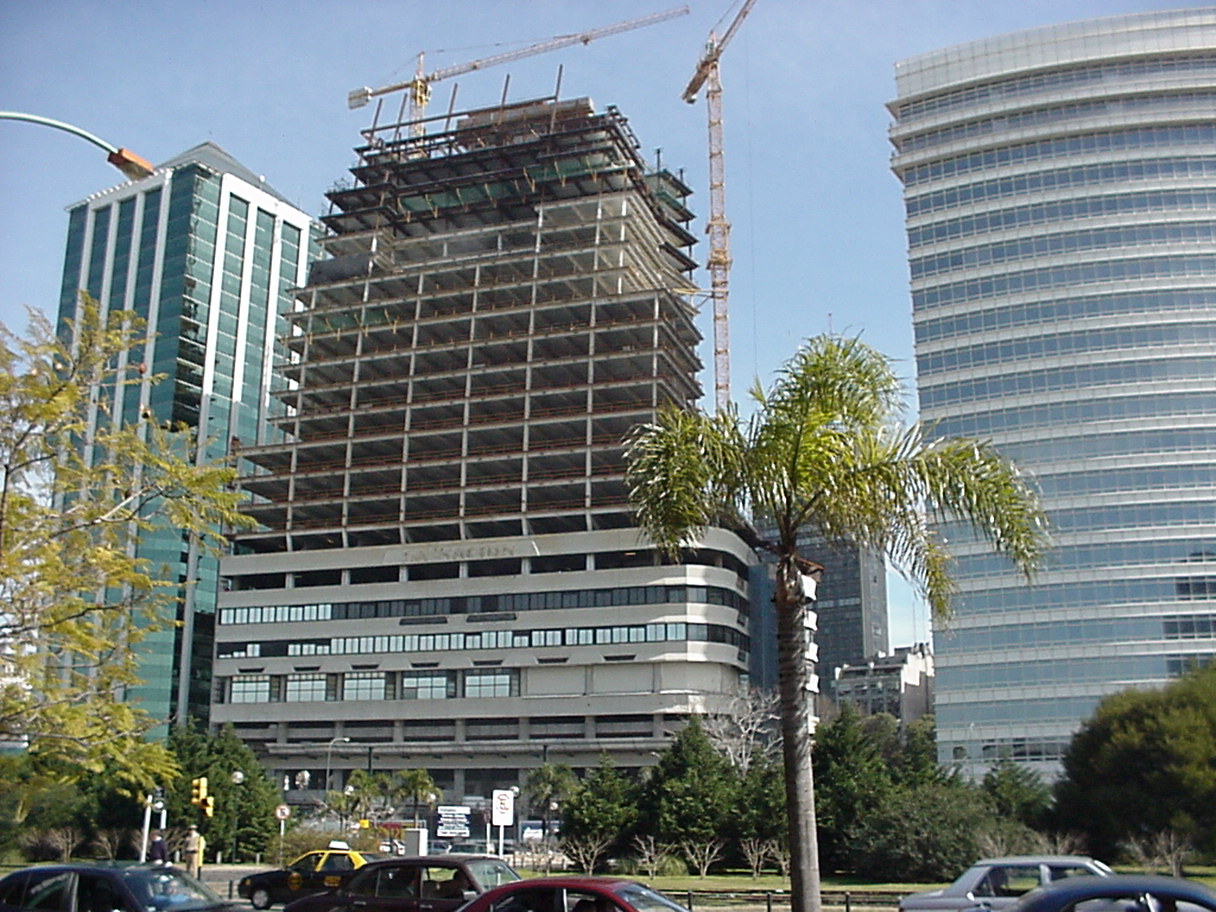

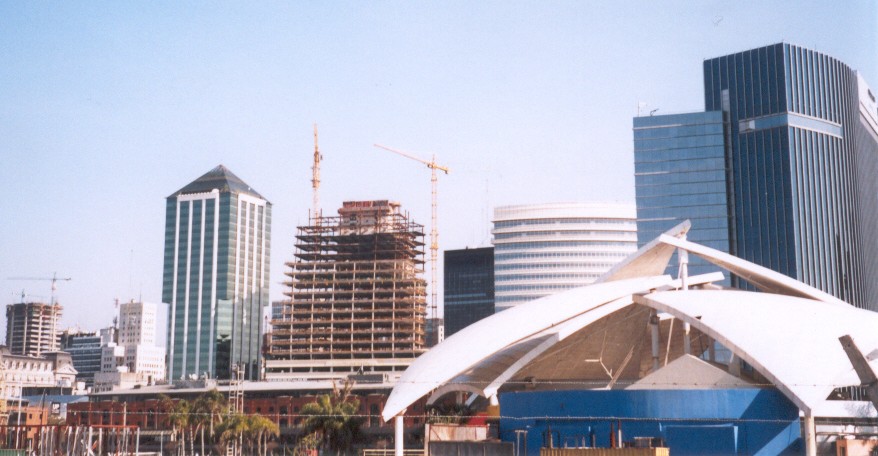

CINTER designed and assembled the metal structure of the La Nación office building in Puerto Madero, Buenos Aires: a building with a surface area of 25,000 m² and a height of 110 meters. This involved the manufacture and assembly of 1,500 tons of structural steel, distributed in 250 columns, 2,000 beams and 16 “open-web” transfer beams — together with metal slabs, curtain wall enclosures (glazed facades) and resistant concrete cores. The project demonstrates CINTER's ability to execute high-rise and complex architectural works, combining metal structure, architectural design and modern construction systems, ideal for high-level corporate buildings.

Customer

La Nación

Sector

Edificios de Arquitectura

Location

Puerto Madero, Buenos Aires

Surface

25.000 m2

Metal Structures

1.500 tn

Scope of the Project

  • Provision and assembly of metal structures.
  • Engineering, Provision and Assembly of Metal Structure of the Office Building

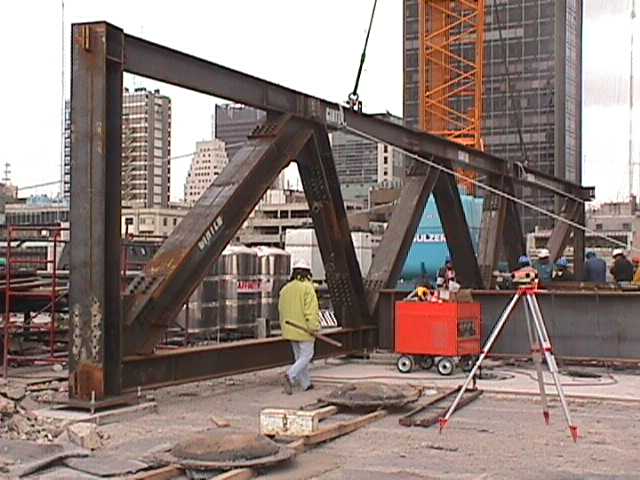

  • Steel structure concentrated in: 250 columns, 2,000 beams and 16 reticulated transfer beams
  • ASTM A572 Gr50 Special Steel
  • Profiles welded by CINTER

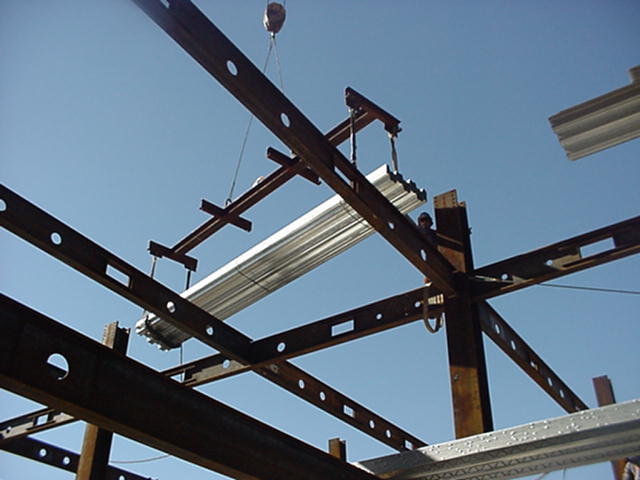

  • 25,000 m2 of steel deck and 50,000 cutting connectors (“studs”)
  • Heavy-duty concrete core

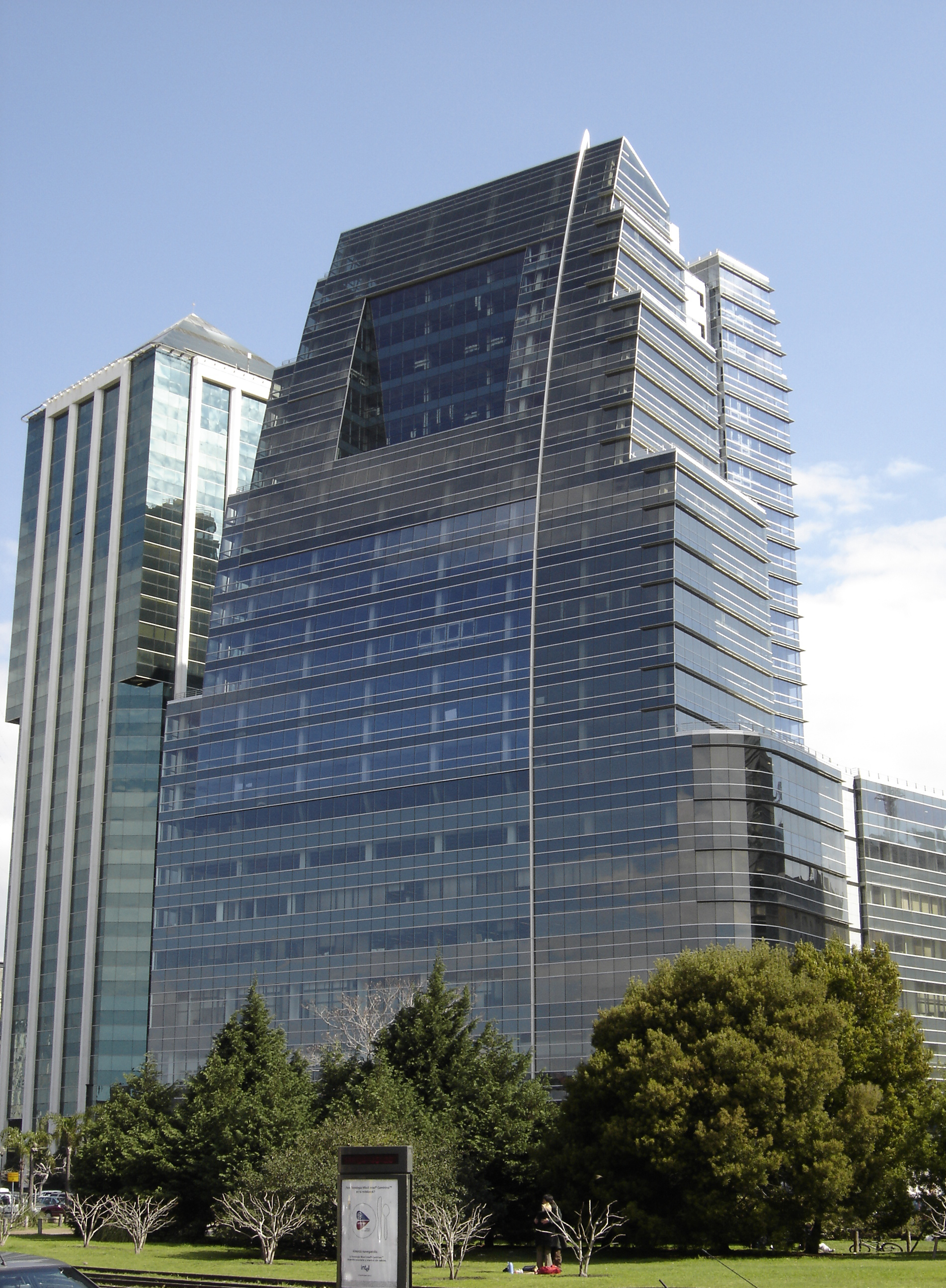

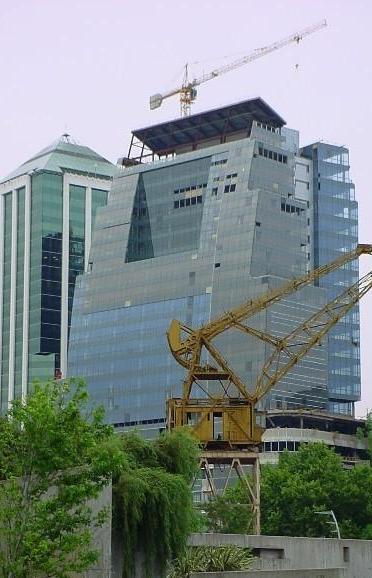

  • Side enclosure (“siding”) is made of glass curtain wall

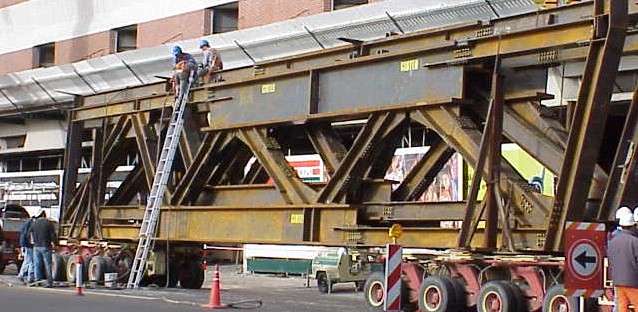

  • Metal transfer structure (reticulated steel beams)
  • Total height of the work 110 meters
